trampa ratchet return spring

Post by Ben » Fri Oct 05, 2012 3:06 pm

has snapped....i assume the heel ratchet is the same as the binding one?
Attachments
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

Post by Ben » Sat Oct 06, 2012 11:03 am

not only is it the same....but its also the same as the MBS ratchet....of which i have a spare! :D

so trampa and mbs ladders and ratchet are identical. worth remembering!
Attachments
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
Jasper
Posts: 4748
Joined: Mon Sep 14, 2009 9:45 am

Post by Jasper » Sat Oct 06, 2012 11:23 am

springs seem to go on the trampa ratchets, dosnt affect performance though, except it makes them a bit rattley and sometimes a bit harder to undo i think.
My site: [color="Red"]OneDayMedia[/color]

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

Post by Ben » Sat Oct 06, 2012 12:49 pm

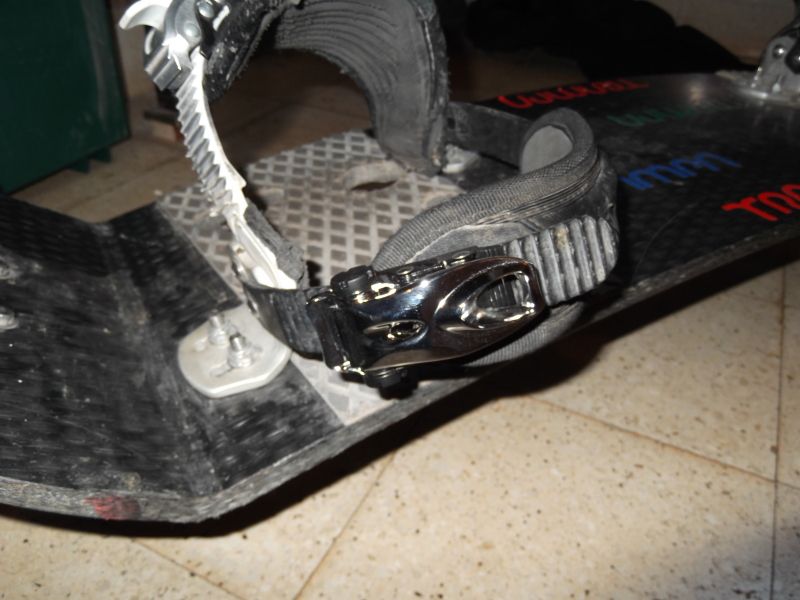

yeah, it still functions. just flops open(like in top pic)...more so on heel straps im sure. one of my mbs ratchets broke a couple of years back (admittedly when i foolishly jumped on it) so i got a replacement set and the spare one fits :D, so chuffed. such a hassle ordering things when your not in the UK...takes ages + postage cost + added tax.
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
GoofyMark
Posts: 843
Joined: Sun Oct 11, 2009 8:31 am

Post by GoofyMark » Sun Oct 07, 2012 12:40 pm

3 out of the 4 Trampa ratchets I bought about a year ago went the same way within 2 weeks of each other........:-(
Bring on the night!

facebook.com/thatlooksdangerous

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

Post by Ben » Sun Oct 07, 2012 1:46 pm

what a bitch! well if that is the case then i will need another ratchet after all....reckon im better off just buying more MBS ratchets?

on a side note - mbs ratchets have always been the worst for loosening up for me, followed by trampa which are generally ok. but the nosno ones seem to be perfect. that being said ive only been riding my nosno for a few months now.
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
Brennig
Posts: 2411
Joined: Sun Mar 20, 2011 9:39 am

Post by Brennig » Sun Oct 07, 2012 2:10 pm

Burton.
Russian Wives for Sale

MY DINOSAUR THEORY

Dinosaurs are from the future, they built a time machine and travelled back in time, unfortunately they miss judged the coordinates and got stuck underground.

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

Post by Ben » Sun Oct 07, 2012 3:45 pm

you mean nosno is Burton or buy Burton? i assume that means they will also fit the same ladder yes?
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

replacing trampa ratchet with Burton

Post by Ben » Thu Nov 29, 2012 6:34 am

got a hold of two Burton (Cartle) ratchets. but as other people have mention...they dont fit because of the hook on the bottom which helps hold the ratchet to the binding.

basically the hook is a few mm to far forward. some people redrilled the hole i think but for me this wasnt an option as the screw wouldnt be able to fit under the loosening arm.

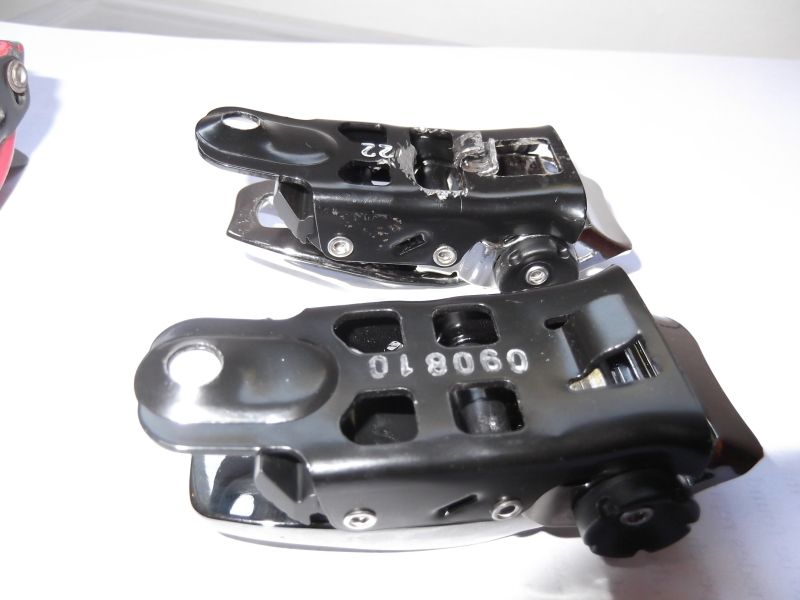

i noticed that it would be possible to cut one of the 'grill' arms and fold it (160 degrees ish) so it would fit into the pre-existing hole in the binding. idealy i would have done that with a Dremel===>




but i dont have one yet so i just used bodged it with a metal hole saw/drill. didnt exactly come out perfect but it works great and you dont see the bottom anyway obviously.

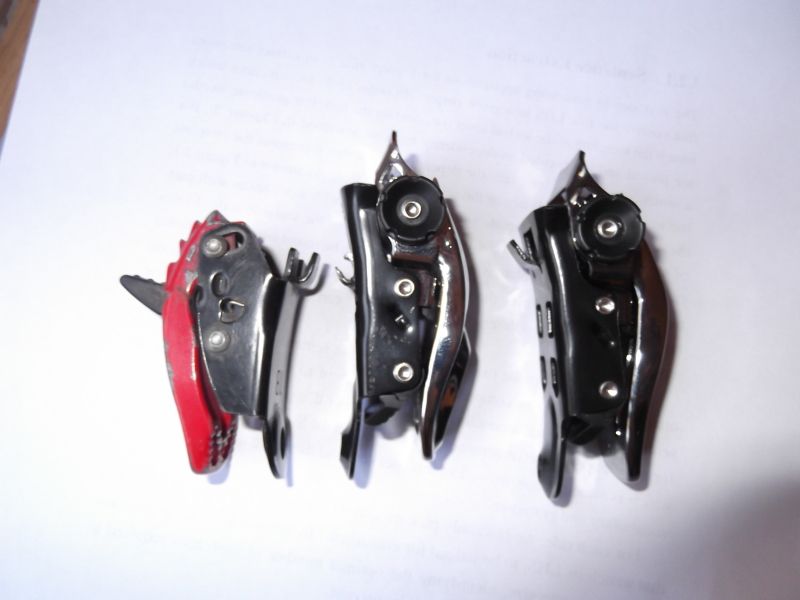

in this pic from left to right: trampa heel ratchet, modified Burton ratchet, unmodified Burton ratchet

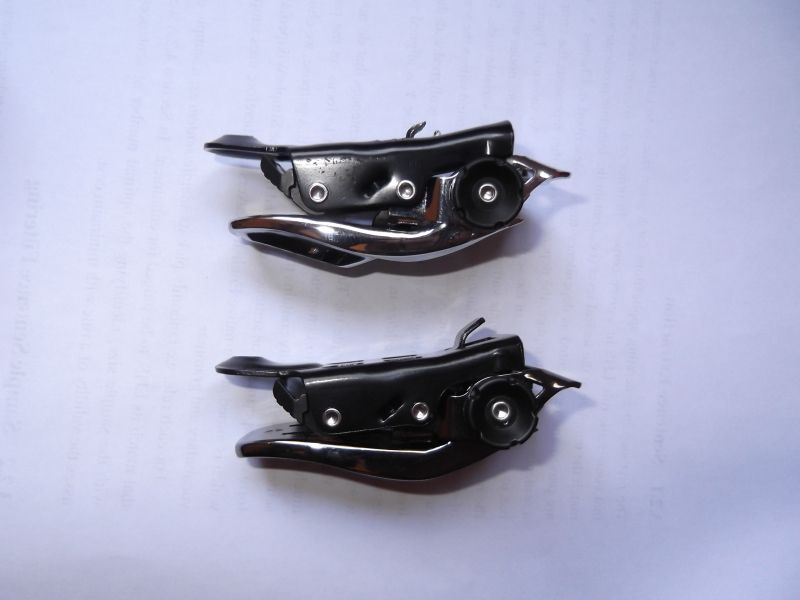

top modified





side note: for posterity sake SOME Burton, all trampa, all nosno and all mbs ratchets and ladders are the same and are interchangeable.
Reason i say some for Burton is cause they have toe ratchets and ladders and upper ratchets and ladders. difference is that the toe ones are narrower and there for will NOT fit MBS, trampa or nosno ladders.
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
Brennig
Posts: 2411
Joined: Sun Mar 20, 2011 9:39 am

Post by Brennig » Thu Nov 29, 2012 6:38 am

On the ankle bindings I just remade the slot that the thingy goes into. Basically hammered a knife into it, it looks like you didn't have enough room on the heel straps to do that.
Russian Wives for Sale

MY DINOSAUR THEORY

Dinosaurs are from the future, they built a time machine and travelled back in time, unfortunately they miss judged the coordinates and got stuck underground.

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

Post by Ben » Thu Nov 29, 2012 8:13 am

nop, it hung over the edge....
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
WSG7
Dirty
Posts: 214
Joined: Mon Aug 27, 2012 3:00 am

Post by WSG7 » Thu Nov 29, 2012 1:51 pm

if you have worn out ladders and broken ratchets could you buy burton ladders to fit on?

User avatar
Ben
Old timer
Posts: 1697
Joined: Sun Aug 28, 2011 9:01 am

Post by Ben » Thu Nov 29, 2012 2:37 pm

burton wide ladder....yes
I strive to ride as much as a go on http://www.surfingdirt.com/forum

User avatar
Alan_RTH
Posts: 1005
Joined: Sat Jul 25, 2009 12:55 pm

Post by Alan_RTH » Thu Nov 29, 2012 3:41 pm

This seems to happen to all of my ratchets except Trampa (yet!) I've gone through a fair few pairs of GI's a couple MBS and a load of random assorted snowboard ones I nicked from Ieuan. I guess that's from riding at a sandstone centre!
